Product Overview:

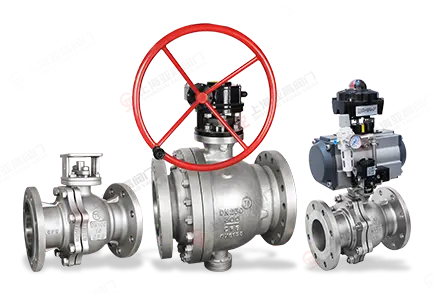

The ball valve is a type of valve widely used in fluid control systems. It controls the flow of fluids by rotating the valve core (ball). The core is a spherical object with a circular hole, and it rotates around an axis perpendicular to the pipeline axis to achieve the functions of opening, closing, or regulating. This product is widely applied in industries such as petroleum refining, long-distance pipelines, chemical engineering, papermaking, pharmaceuticals, water conservancy, power, municipal services, and steel manufacturing.

Nominal diameter: 10mm ~ 1000mm and 1/2" ~ 60"

Nominal pressure: 1.0MPa ~ 16.0MPa/150Lb ~ 1500Lb/10K ~ 160K

Adopting standards: GB, DIN, ANSI, JIS, BS, etc.

Product Overview:

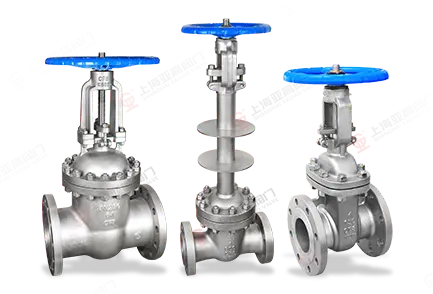

The gate valve is a linear shut-off valve that controls the flow of fluid by the vertical movement of the gate plate (valve core) along the center line of the valve seat. It is a type of forced-sealing valve and is widely used in industrial pipeline systems to cut off or connect media (liquids, gases, steam, etc.). It is not suitable for regulating flow.

Nominal diameter: 10mm ~ 1000mm and 1/2" ~ 60"

Nominal pressure: 1.0MPa ~ 16.0MPa/150Lb ~ 1500Lb/10K ~ 160K

Adopting standards: GB, DIN, ANSI, JIS, BS, etc.

Product Overview:

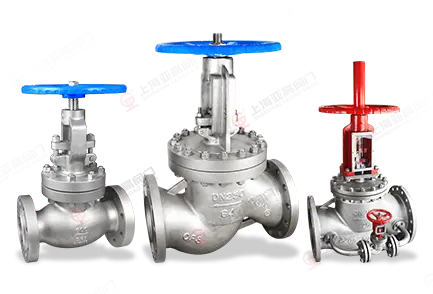

A stop valve is a type of valve that achieves the opening and closing of the valve and the regulation of flow through the vertical movement of the valve core (valve disc) along the centerline of the valve seat, with a linear action. It is a type of forced-sealing valve and is widely used in various fluid pipeline scenarios for medium cutoff, flow control, and pressure regulation.

Nominal diameter: 10mm ~ 1000mm and 1/2" ~ 60"

Nominal pressure: 1.0MPa ~ 16.0MPa/150Lb ~ 1500Lb/10K ~ 160K

Adopting standards: GB, DIN, ANSI, JIS, BS, etc.

Product Overview:

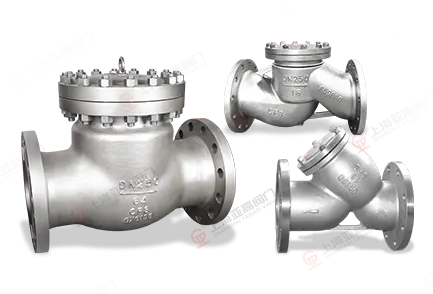

A check valve is a type of valve where the closing element is a circular disc that moves due to its own weight and the pressure of the medium to prevent the reverse flow of the medium. It belongs to the automatic valve category and is also known as an anti-reflux valve, a one-way valve, a return valve, or a isolation valve.

A filter is an indispensable device in the pipeline for transporting media. It is usually installed at the inlet end of pressure reducing valves, pressure relief valves, level control valves, and other equipment.

Nominal diameter: 10mm ~ 1000mm and 1/2" ~ 60"

Nominal pressure: 1.0MPa ~ 16.0MPa/150Lb ~ 1500Lb/10K ~ 160K

Adopting standards: GB, DIN, ANSI, JIS, BS, etc.

Product Overview:

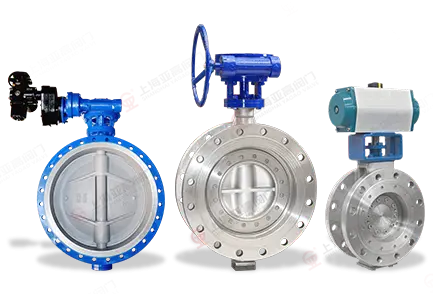

The butterfly valve, also known as the flap valve, is a simple structure regulating valve. It can be used for the on-off control of medium in low-pressure pipelines. The butterfly valve refers to a type of valve where the closing element (valve disc or butterfly plate) is a round plate that rotates around the valve axis to achieve opening and closing.

Valves can be used to control the flow of various types of fluids such as air, water, steam, various corrosive media, mud, oil, liquid metals and radioactive media. They mainly play the roles of cutting off and throttling in pipelines. The butterfly valve's closing and opening element is a disc-shaped butterfly plate, which rotates within the valve body around its own axis to achieve the purpose of opening, closing or regulating.

Nominal diameter: 10mm ~ 1000mm and 1/2" ~ 60"

Nominal pressure: 1.0MPa ~ 16.0MPa/150Lb ~ 1500Lb/10K ~ 160K

Adopting standards: GB, DIN, ANSI, JIS, BS, etc.

Product Overview:

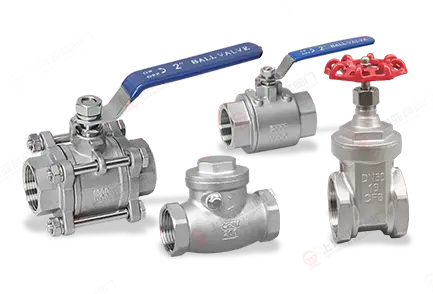

Threaded valves (also known as threaded shut-off and regulating valves) are a widely used type of valves in industrial piping systems. They are connected to the pipeline through the threaded structures at both ends of the valve body, without the need for welding or flange fastening. They have core advantages such as convenient installation, reliable sealing, and low maintenance costs, and are suitable for fluid transportation scenarios with medium and low pressure and medium to small diameters.

Nominal meridian: DN10mm ~ 600mm and 1/2' ~ 24'

Valve body material: Stainless steel, cast steel, carbon steel, forged steel, etc.

Adopting standards: GB, DIN, ANSI, JIS, BS, etc.

Product Overview:

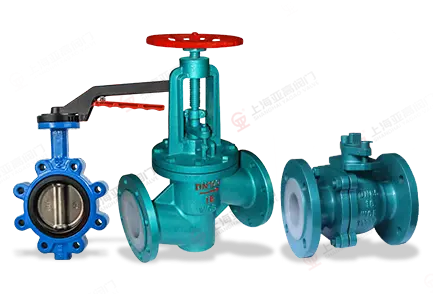

Corrosion-resistant valves, also known as fluorine-coated valves, are components used in pipeline fluid transmission systems to control the flow of corrosive media. They have functions of directing flow, closing, regulating, and throttling. They are suitable for the control of acid, alkali, and salt solutions in industries such as chemical engineering, petroleum, pharmaceuticals, and printing and dyeing.

The valve bodies are usually lined with materials such as polytetrafluoroethylene (F4) or polyperfluorobutylene (F46) to enhance corrosion resistance. The main types include fluorine-coated check valves, fluorine-coated gate valves, fluorine-coated butterfly valves, and fluorine-coated ball valves.

Nominal diameter: DN15 ~ DN1000mm

Nominal pressure: PN6, PN10, PN16, PN25, PN40

Anti-corrosion materials: Stainless steel, duplex steel, titanium alloy, Hastelloy alloy, Monel alloy, fluorine-lined, rubber-lined, etc.

Product Overview:

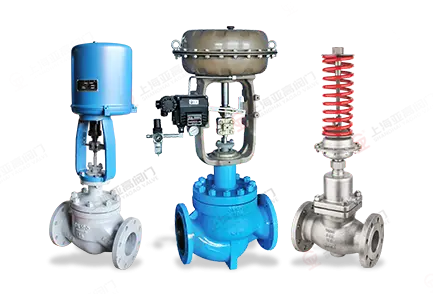

A regulating valve generally refers to a control valve. A control valve consists of two main components: the valve body component and the actuating mechanism component (or actuating mechanism system). It is divided into four major series: single-seat control valve series, double-seat control valve series, sleeve control valve series, and self-operated control valve series. Variants of the four types of valves can result in numerous different applicable structures. Each structure has its specific applications, characteristics, advantages, and disadvantages. Regulating valves can be widely applied in various precise control scenarios such as different temperatures, pressures, and flow rates.

Nominal diameter: DN20 - DN200mm

Valve body material: Stainless steel, cast steel, cast iron, forged steel

Control methods: Switch type, adjustment type, pneumatic control, electric control
